Unitree Z1
EAN: 0609851436558
21.984,40 €
❤️ Perfetti insieme — selezioni per aggiungere al carrello.

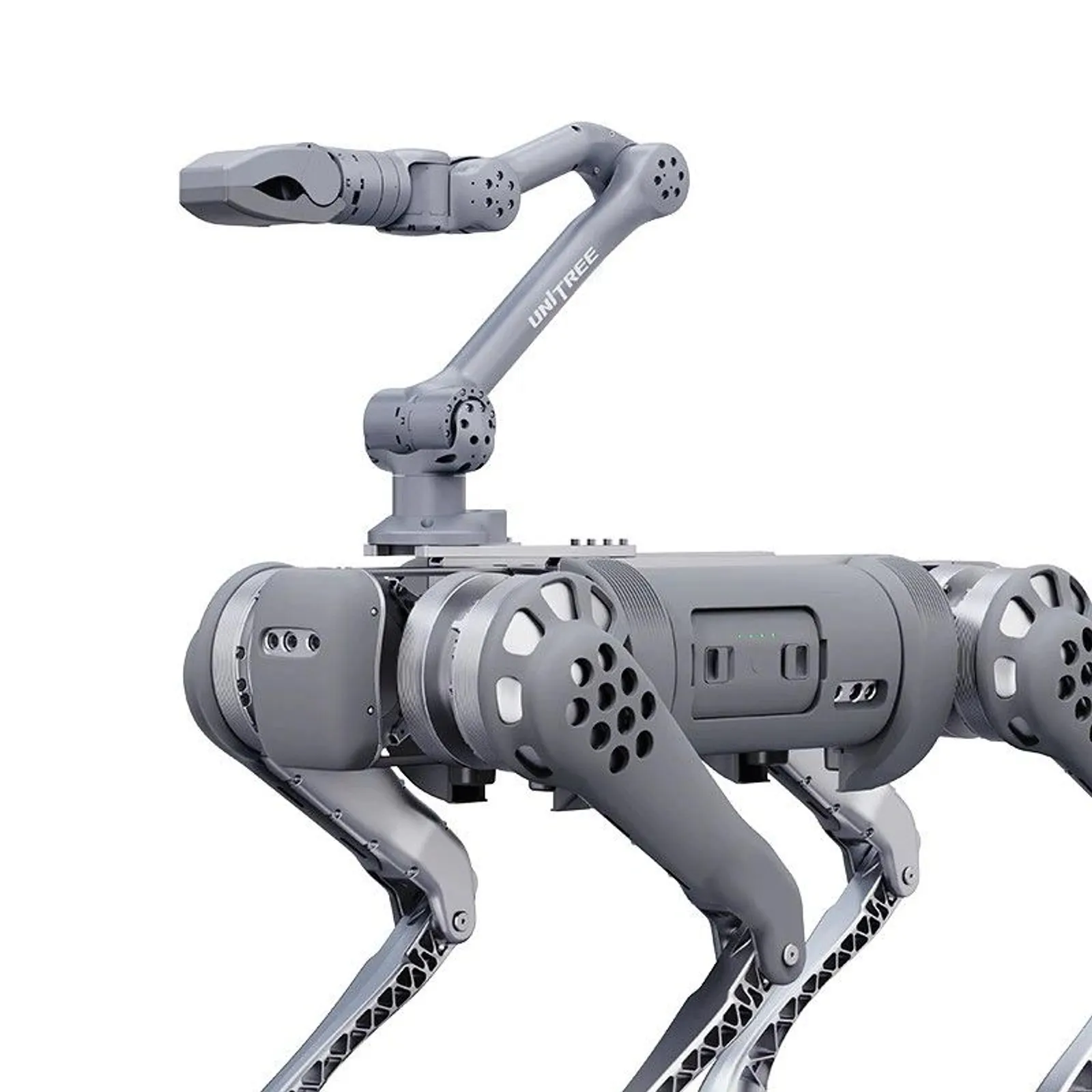

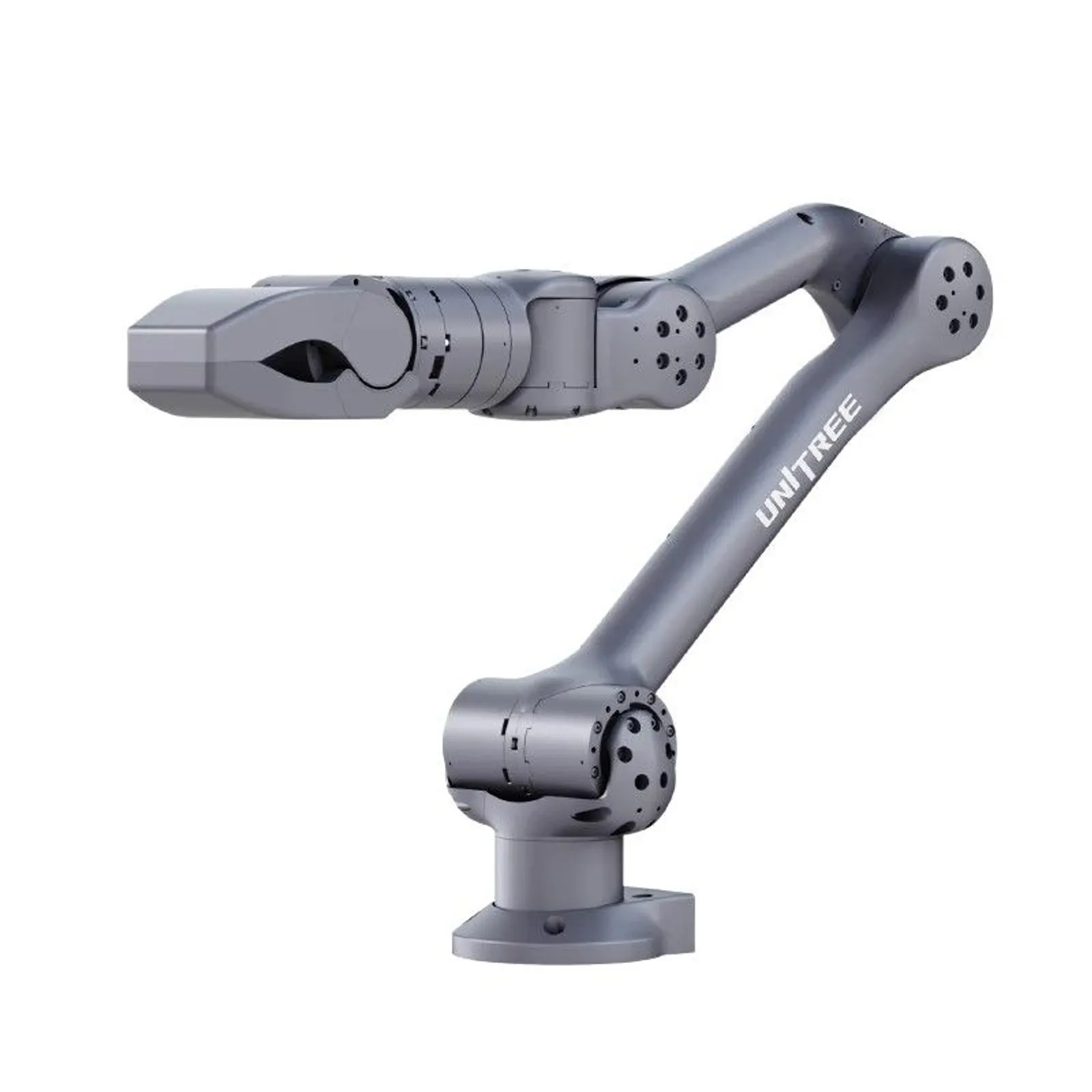

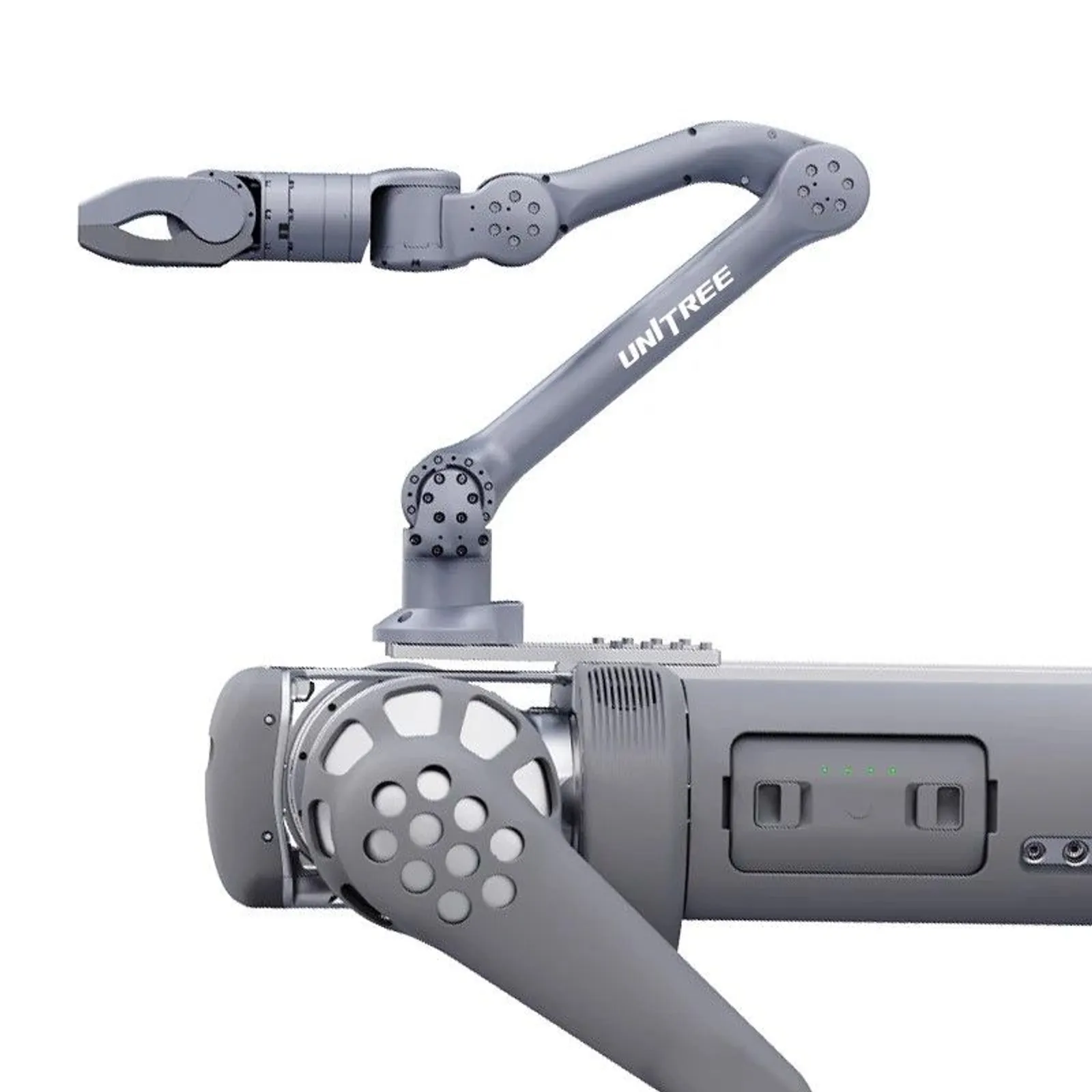

The Unitree Z1 is a lightweight and precise 6-axis robotic arm designed for integration with mobile robots such as the Unitree Aliengo and B1. With its high precision, flexibility, and open software interface, it enables the execution of diverse tasks in industry, logistics, research, and everyday use.
Key Features:
Degrees of Freedom (DOF): 6
Weight: 4.1 kg (Z1 Air), 4.3 kg (Z1 Pro)
Payload Capacity: up to 2 kg (Z1 Air), 3–5 kg (Z1 Pro)

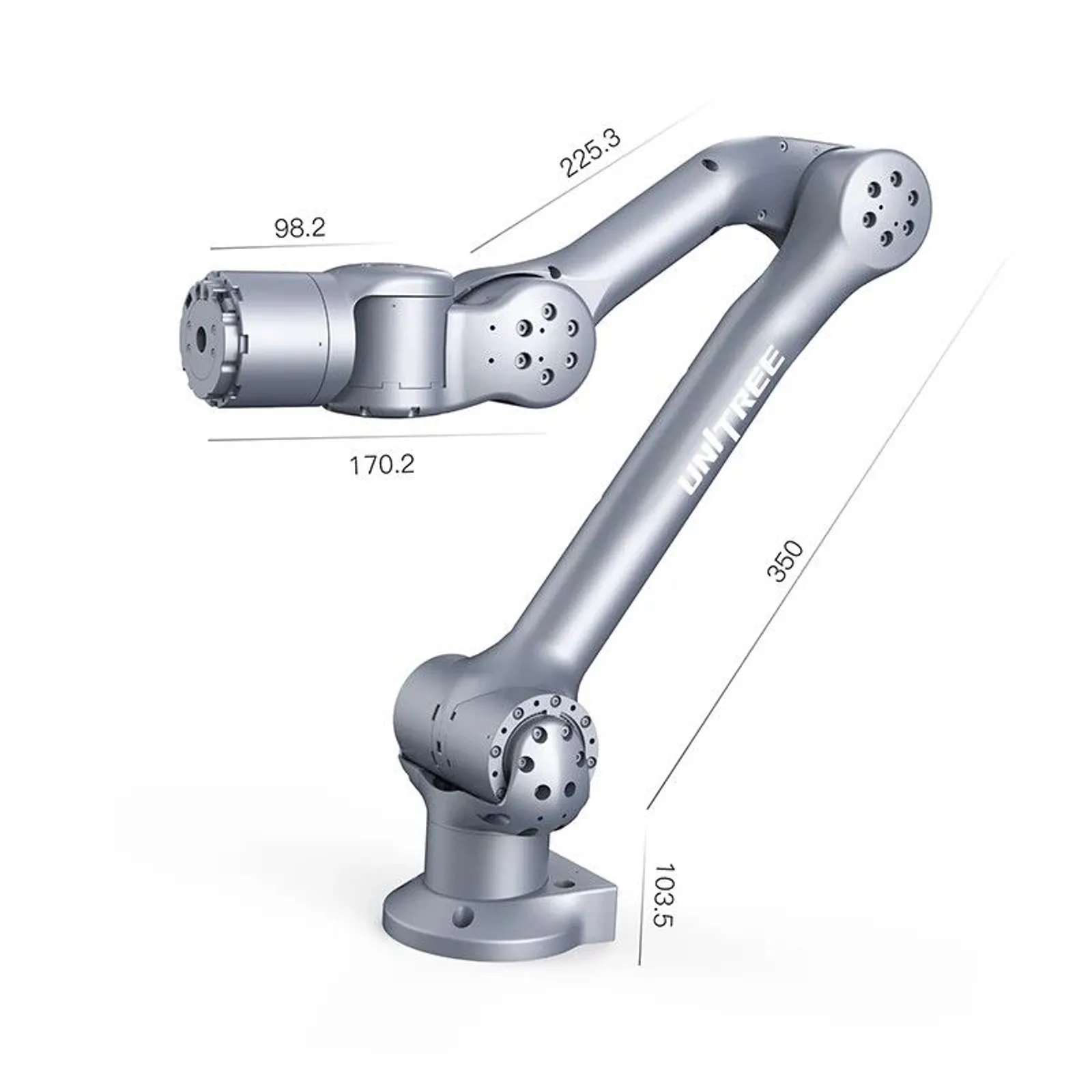

Reach: 740 mm
Repeatability: ~0.1 mm
Power Supply: 24V, >20A
Maximum Joint Torque: up to 33 N·m
Maximum Joint Rotation Speed: 180°/s
Control: position and force
Programming: open interface, support for C++ and ROS
Interfaces: Ethernet, RS485
Additional Features: collision detection, quick-change end effectors (grippers, screwdrivers, suction cups)
Usage Possibilities:
Industrial Automation: assembly, packaging, object manipulation
Logistics: sorting, item transport, warehouse automation
Research and Development: algorithm testing, environmental interaction
Education: teaching aid for robotics and mechatronics
Everyday Use: assistance with tasks, demonstrations, interactive scenarios
Technical info
| Warranty | 1 year |
Product Safety
| Manufacturer information | HANGZHOU YUSHU TECHNOLOGY CO., LTD | s: 4th Floor, Building 1, 88 Dongliu Rd, BinjiangDistrict, Hangzhou, Zhejiang, China| [email protected] |
| EU responsible person | HANGZHOU YUSHU TECHNOLOGY CO., LTD | s: 4th Floor, Building 1, 88 Dongliu Rd, BinjiangDistrict, Hangzhou, Zhejiang, China| [email protected] |
Specifiche
- Garanzia
- 12 mesi
- Batteria e ricarica
- Minimum: Voltage (V): 24 V / Current (A): – / Total Power (W): – / / / Maximum: Voltage (V): 24 V / Current (A): > 20 A / Total Power (W): 500 W / Charger included: /
Produttore: HANGZHOU YUSHU TECHNOLOGY CO. / LTD / s: 4th Floor, Building 1, 88 Dongliu Rd, BinjiangDistrict, Hangzhou, Zhejiang / China/ [email protected] Sicurezza del prodotto
