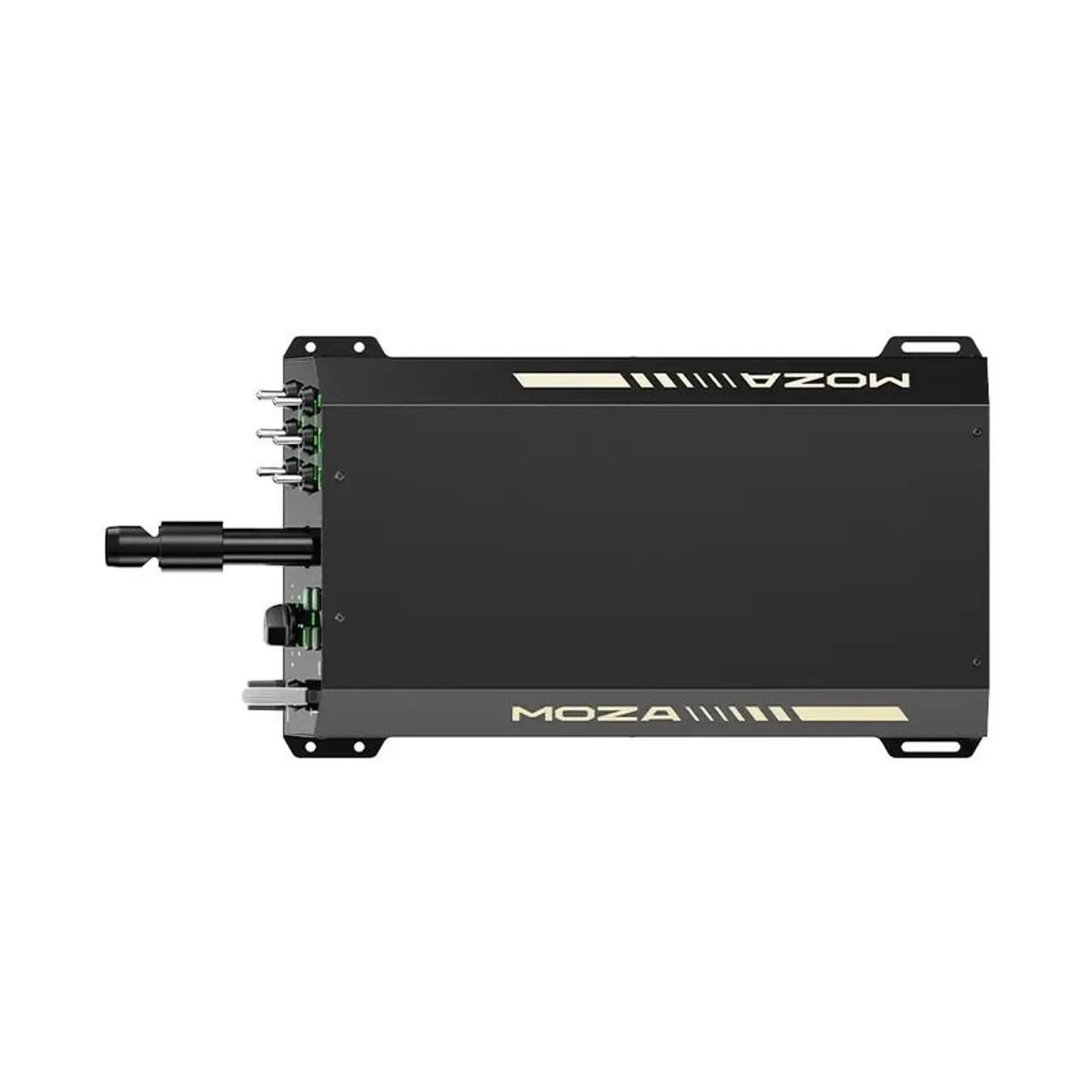

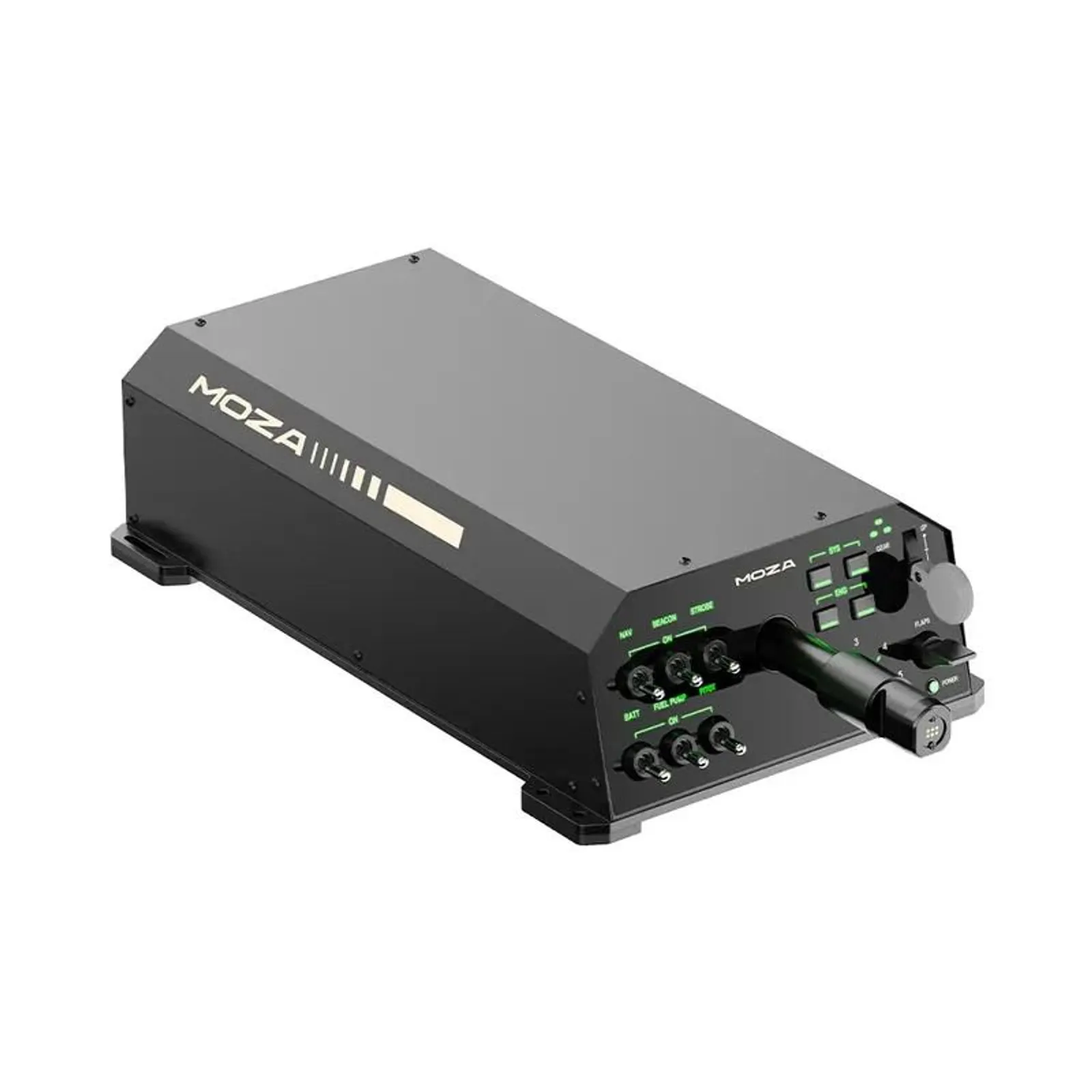

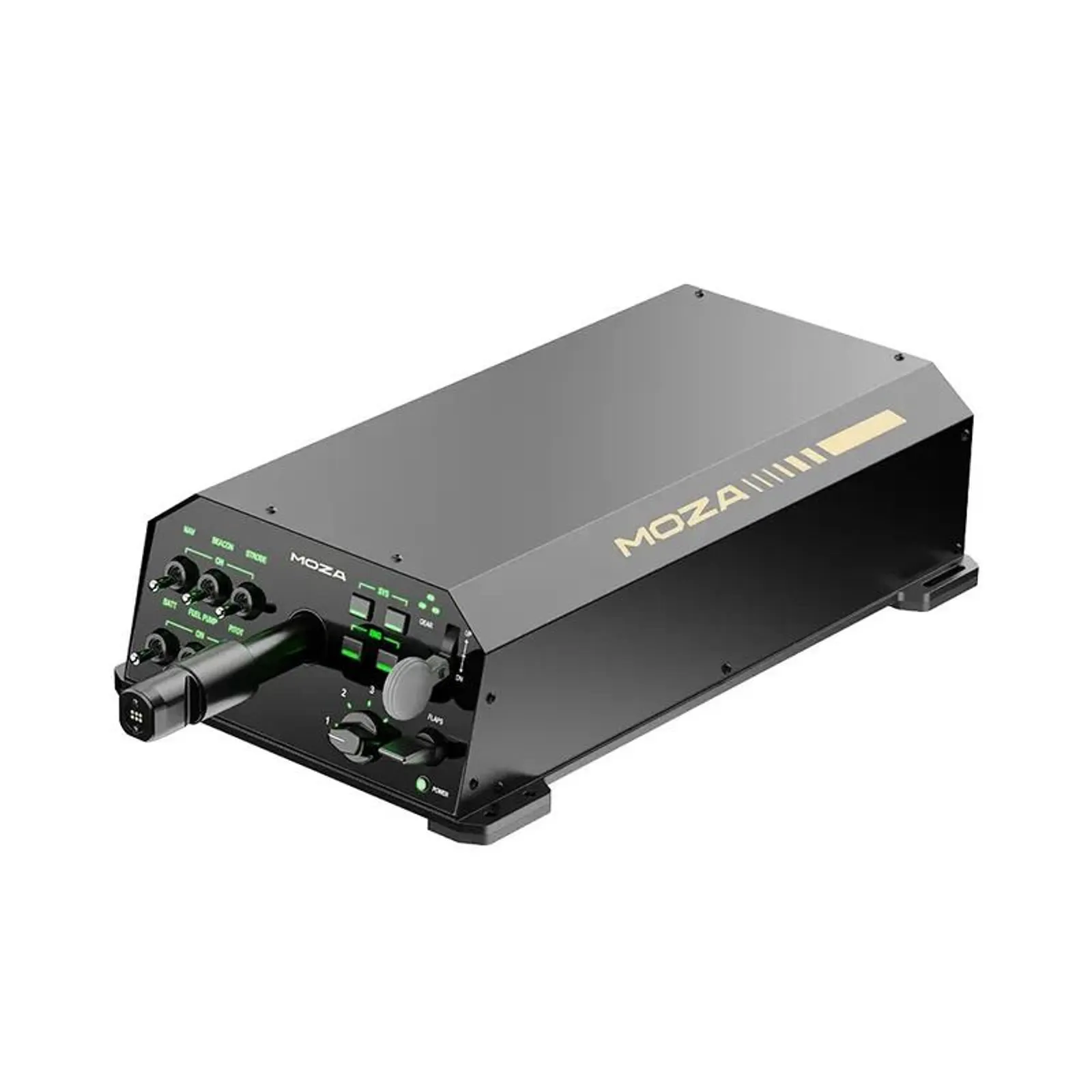

MOZA Racing AS011 AY210 Force Feedback Yoke Base

The MOZA AY210 Force Feedback Yoke Base is a dedicated force feedback flight simulation base, designed for both general aviation and commercial airliner simulation. The base uses proprietary MCLS force feedback technology to deliver an authentic and immersive flying experience.

Key Features

• 9 Nm sustained torque on the roll axis
• 210 N push force on the pitch axis
• 150 mm of travel for precise and responsive control
• Fully aluminum quick-release mechanism, inspired by racing car technology

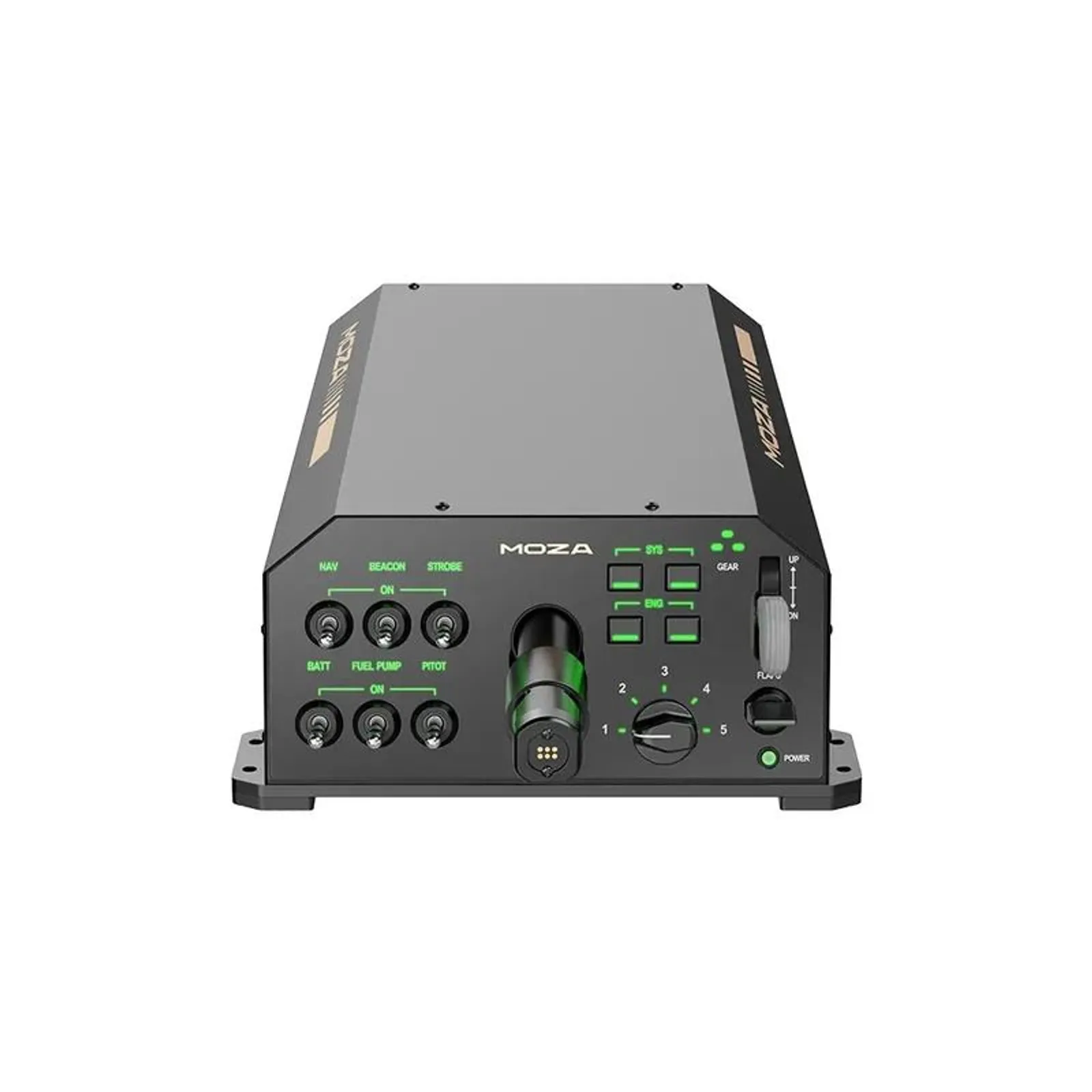

• 13 programmable physical switches on the front panel, configurable via MOZA Cockpit software
• Full 180° roll range (±90°) for realistic handling
• 280 MHz processor and 15-bit magnetic encoder for highly responsive input
• Compatible with leading flight simulators: Microsoft Flight Simulator 2024/2020/X, War Thunder, DCS World 2.9, Star Citizen, IL-2 Sturmovik: Great Battles, X-Plane 11 and 12
• Native telemetry force feedback with no plugins required
• Multiple mounting options: desktop clamp, suspended desktop clamp, direct cockpit mounting, aluminum profile mounts
• Extensive customization via MOZA Cockpit software (lighting, force feedback profiles)
• Tested through millions of stress cycles for long-term reliability

Technical Specifications

• Dimensions: 243 × 403 × 216 mm
• Housing material: Aluminum alloy
• Weight: 8.0 kg
• Motors: Two high-performance servo motors
• Max push force (pitch): 210 N
• Sustained roll torque: 9 Nm
• Travel: 150 mm
• Compatible yokes: MOZA Yoke series
• Power consumption: 216 W
• Voltage: 110–220 V AC → 36 V DC
• Chip precision: 15-bit magnetic encoder
• USB refresh rate: 1000 Hz
• Mounting options: Desktop clamp (optional), suspended desktop clamp (optional), direct simulator cockpit mounting
• Ports: Power, USB, throttle, rudder pedals, panel, and more
• Emergency stop switch: Optional
• Intelligent telemetry force feedback: Supported, no plugins required
• Native force feedback: Supported
• Supported platform: PC

In the Box

• MOZA AY210 Yoke Base × 1
• Tool kit × 1
• User manual × 1
• Warranty card × 1
