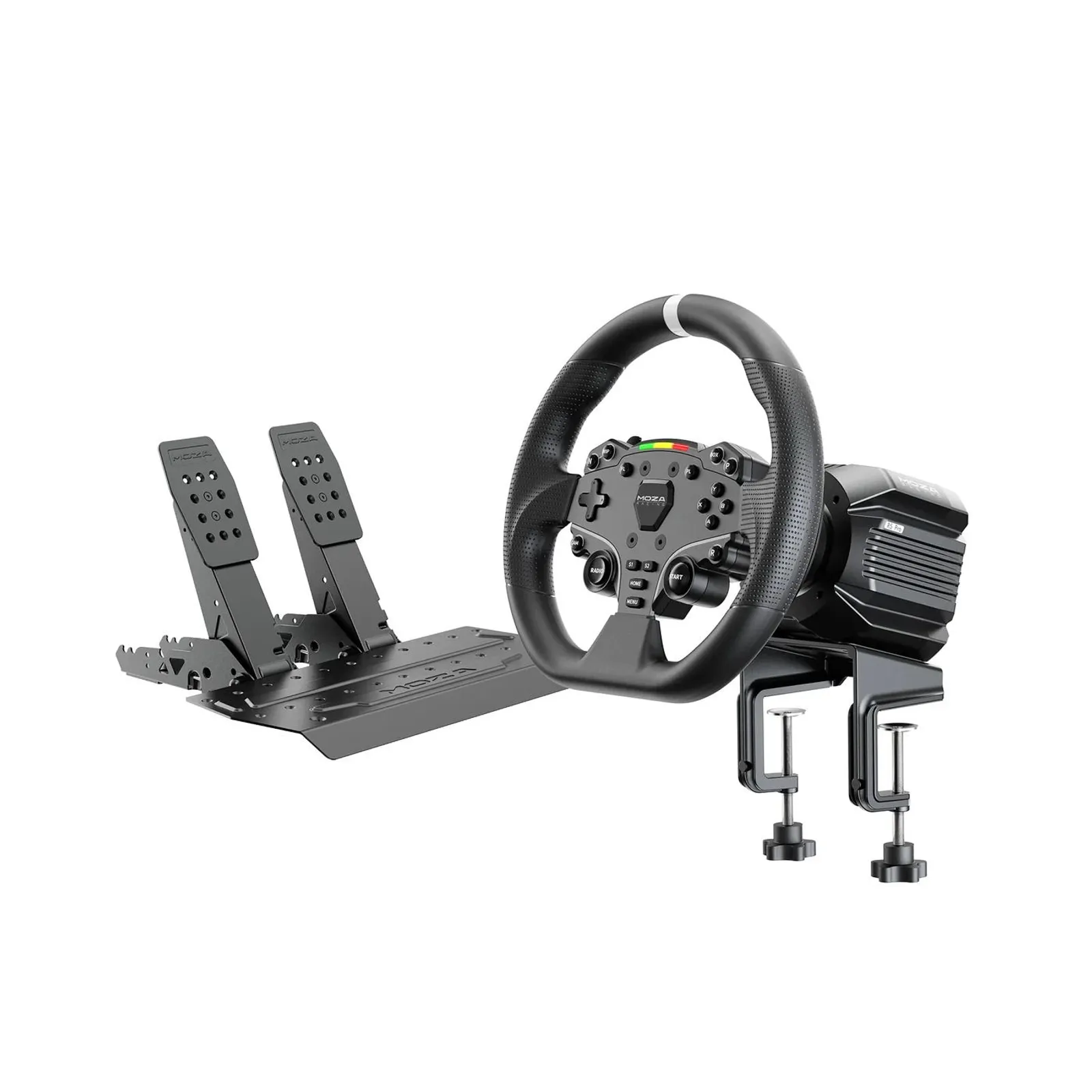

MOZA R5 Pro RS105 racing simulator bundle

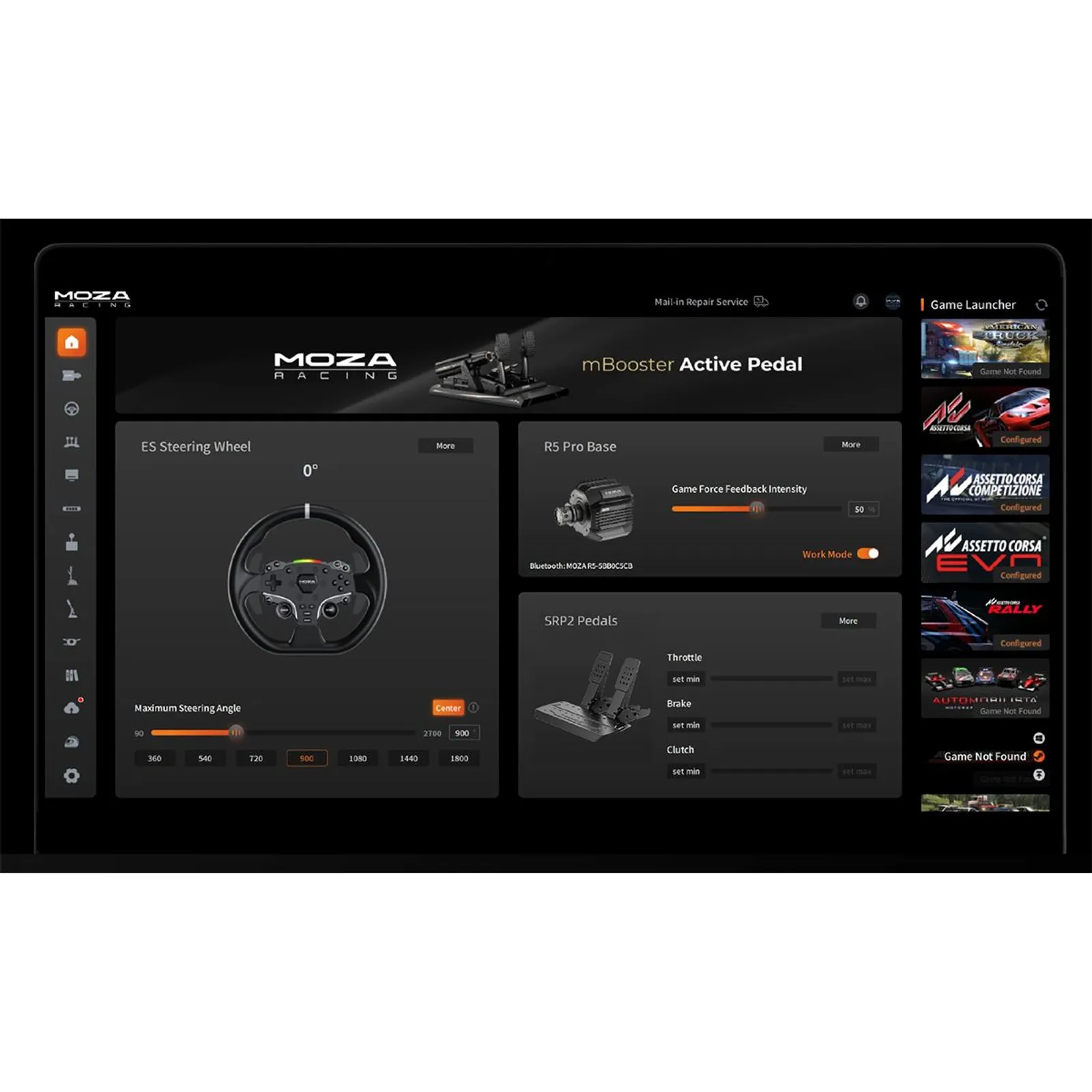

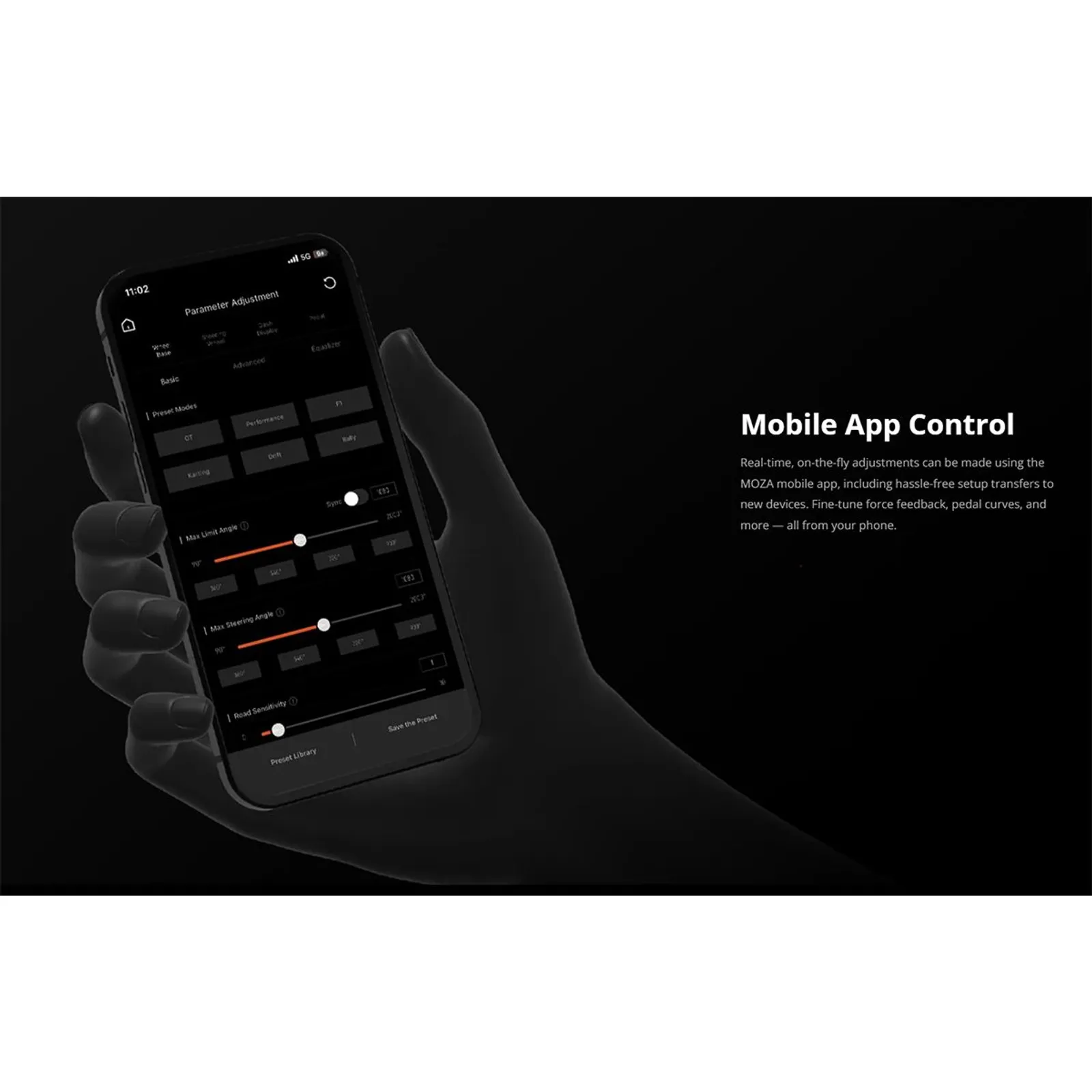

The MOZA R5 Pro Bundle upgrades the proven R5 package with a 6 Nm Direct Drive system, 21-bit magnetic encoder, 600 MHz processor and MOZA NexGen Force Feedback Algorithm 5.0. Combined with the ES Lite Steering Wheel and SRP Lite2 two-pedal set, it delivers more precise road feel, faster response and smoother force-feedback transitions in a compact, race-ready package. Settings can be adjusted through MOZA Pit House software or the MOZA Racing App.

Package Contents

• MOZA R5 Pro Wheel Base

• MOZA ES Lite Steering Wheel

• MOZA SRP Lite2 Pedals – throttle and brake

• Desk clamp

• Power adapter, cable, tool kit and user manual

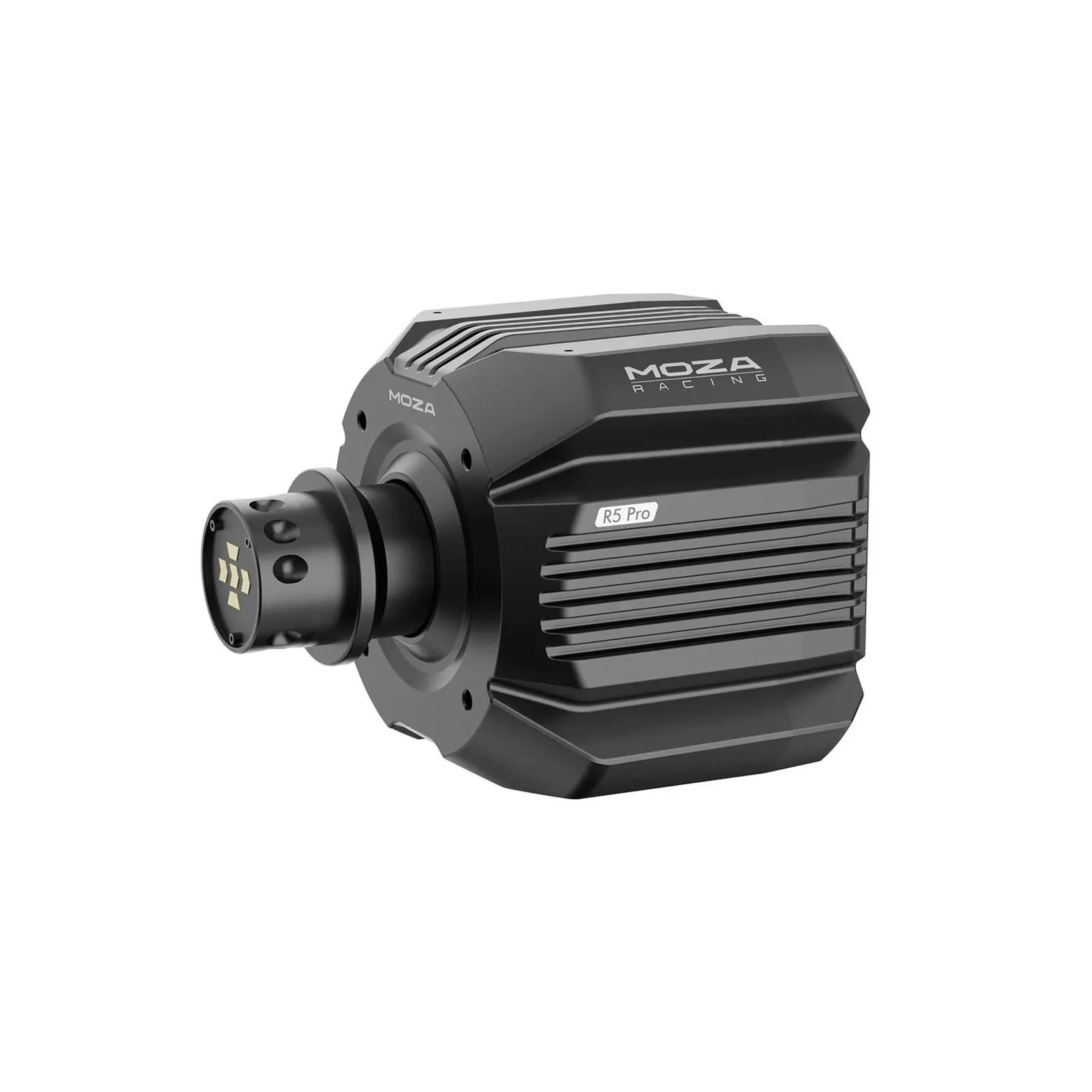

MOZA R5 Pro Wheel Base

• Drive system: Direct Drive

• Torque: 6 Nm

• Steering angle: 90–2700°

• Encoder: 21-bit magnetic

• CPU: 600 MHz

• USB refresh rate: 1000 Hz

• Peak power: 100 W

• Input voltage: 110–220 V AC → 12 V DC

• Housing material: aluminium alloy

• Colour: black

• Weight: 2.9 kg

• Quick release: supported

• Connection ports: power, USB, pedals, dash, shifter, handbrake, E-stop

• Mounting options: bottom, front and desktop

• Firmware updates: supported

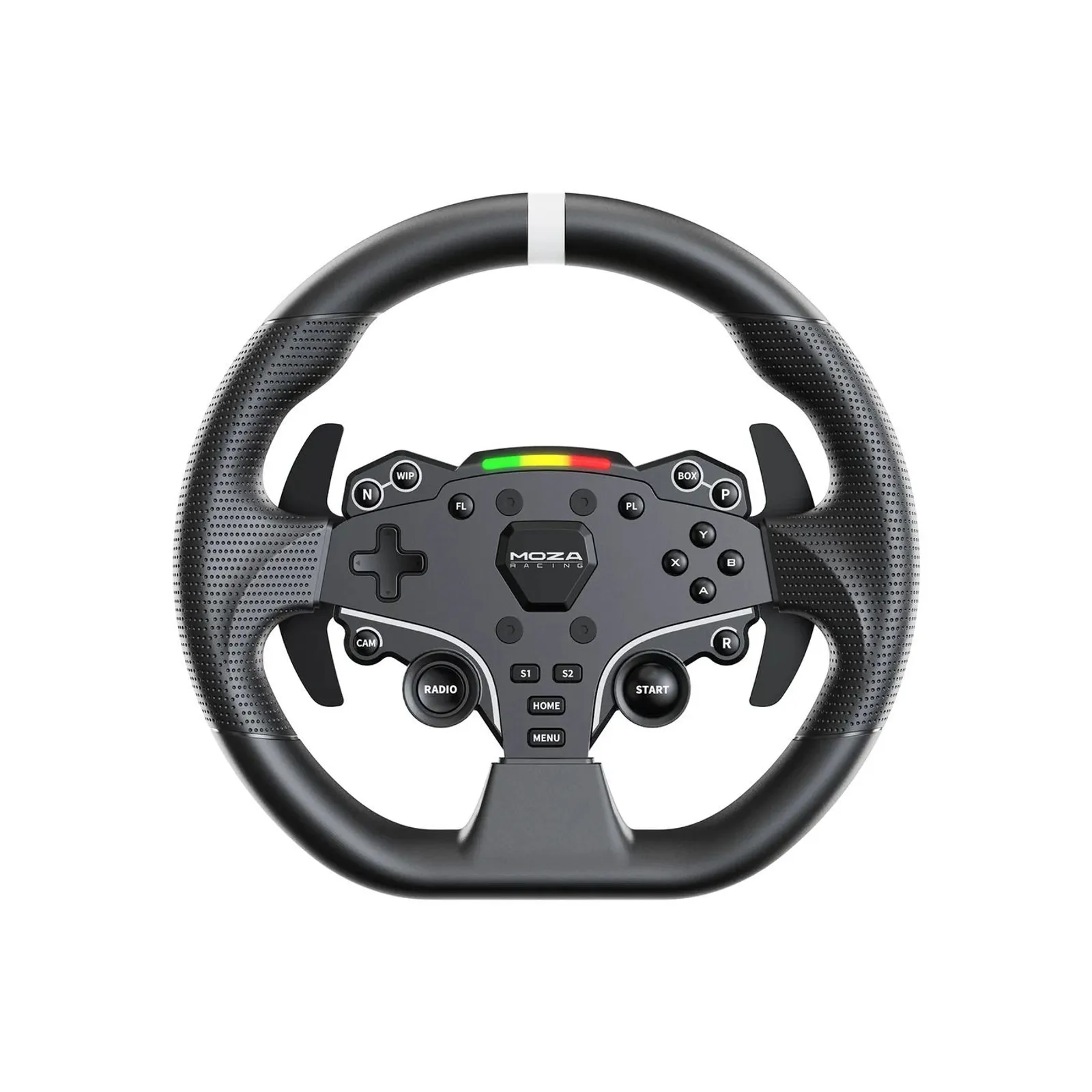

MOZA ES Lite Steering Wheel

• Grip material: TPE

• Frame material: aluminium alloy

• Shift paddles material: aluminium alloy

• Diameter: 280 mm

• Buttons: 22

• RPM indicator: 10 top-mounted RGB LEDs

• Intelligent telemetry: supported

• Adjustable RPM LEDs through MOZA Pit House: supported

• Quick release: all-aluminium

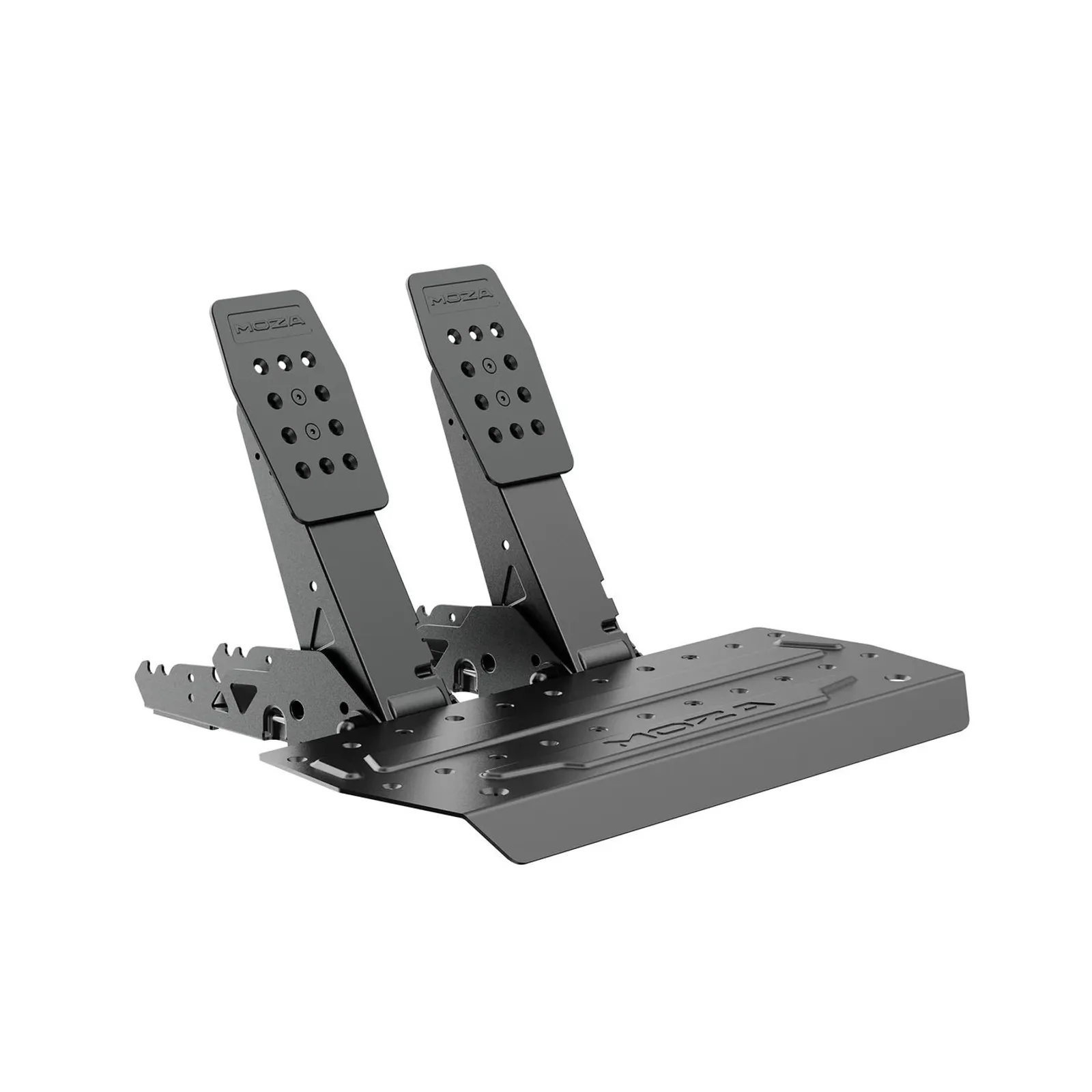

MOZA SRP Lite2 Pedals

• Included pedals: throttle and brake

• Clutch pedal: not included; available separately

• Pedal face material: high-strength steel

• Pedal base material: high-strength steel

• Sensor: contactless Hall sensor

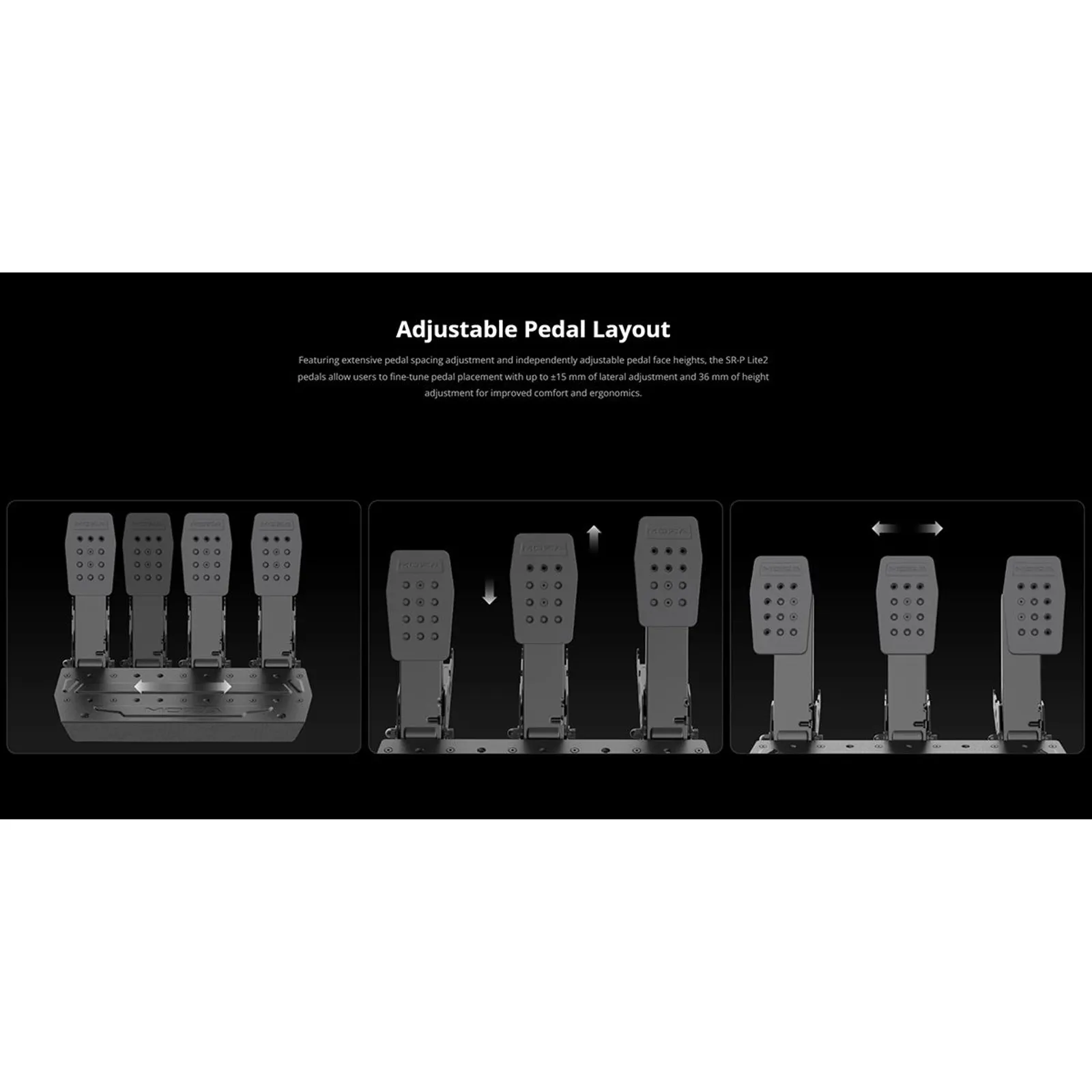

• Pedal lateral adjustment: 15 mm

• Pedal height adjustment: 36 mm

• Pedal curve adjustment: supported

• Real-time pedal output display: supported
